- Place of Origin: china
- Brand Name: Euchips
- Model Number: DMX100

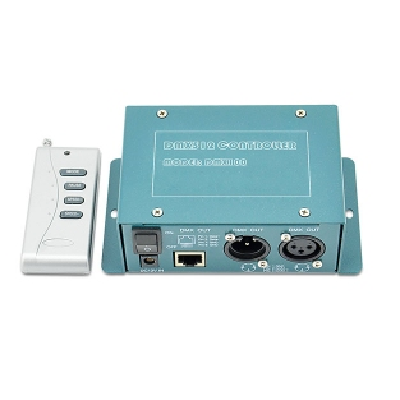

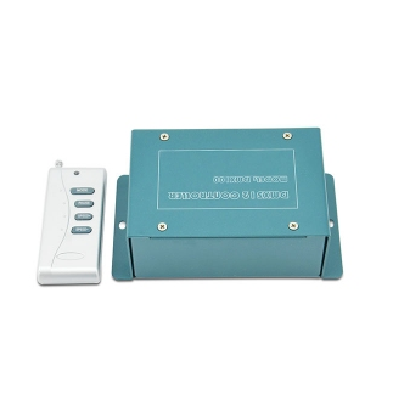

Stand Alone 512ch XLR-3/RJ45 DMX Master Controller DMX100
General Introduction
DMX100 is a full-color LED control system which uses on indoor and outdoor decorative lighting.This control system can fulfill 256 grey levels for each R,G,B color,totally 16.77 million real full-color. With the wireless remote controller, you can achieve the mode change and speed adjustment very conveniently.There are 30 modes and 8 levels of speed you can choose, and with the pause function,you can keep the fixed color optionally.
Feature
1. Meets DMX512(1990)
2. Wireless remote controller
3. 256 levels of grey, totally 16.77 million colors, really full color
4. Various modes with Pause function
5. Eight different speed level
6. Automatic parameter memory
7. Various output interface, XLR-3 Male & Female, RJ45
8. Convenient for wiring and installation
9. Good function at anti-jamming and auto-resumption
- Place of Origin: china
- Brand Name: Euchips
- Model Number: DMX100
Technical Parameter
| Product Name | Stand Alone 512ch XLR-3/RJ45 DMX Master Controller |
| Item | DMX100 |
| Input Voltage | 12VDC（Include 220/110VAC to 12VDC adaptor） |
| Power Consumption | 5W |
| Memory Capacity | 32KB |
| Output channel | 1 port |
| Transmission interface | DMX512（1990） |
| Transmition speed | 250Kbps |
| Pixels | 50 pixels，170 pixels max. |
| Lamp type can be controlled | Wallwashing light, Tube light,Cube light,etc. |
| Control mode | Asynchronous full-color control |
| Remote distance | 50M |
| Description | Fixed 30 modes, ,such as flash,fade,streamy,chase, etc. |
| Packaging Size | 116*80*47mm |
| G.W. | 0.6kg |
| N.W. | 0.5kg |
