Product Details
- Place of Origin: china
- Brand Name: Euchips
- Model Number: Walldim 106

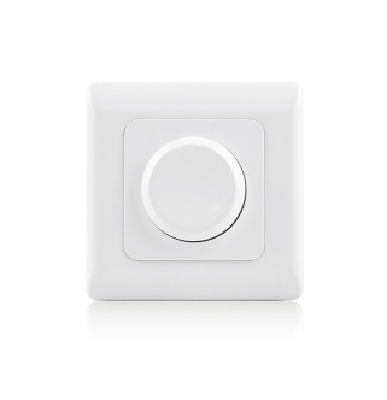

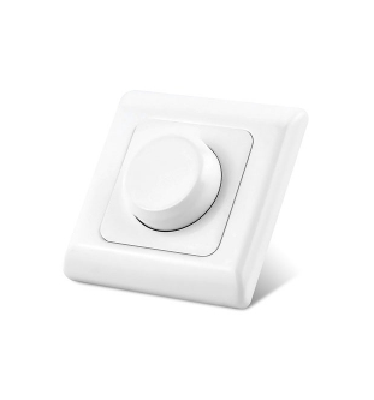

200-240VAC Triac Touch Light Switch Walldim106
Feature
1. Support trailing edge (ELV) dimming
2. ABS material, high flame retardant
3. Fashion, and easy to use
4. Can be installed in the wall box
4. Suitable for TRIAC dimming driver, incandescent lamps, halogen lamps and other loads
5. Installation in appliance box to DIN 49073 , used in the study, bedroom, restaurant, bars and other places need dimming control
- Place of Origin: china
- Brand Name: Euchips
- Model Number: Walldim 106
Technical Parameter
| Product Name | 200-240VAC Triac Touch Light Switch | |
| Model | Walldim106 | |
| Input voltage | 200-240VAC | |
| Input frequency | 50/60Hz | |
| Load type | Incandescent lamp | 400W |
| Halogen lamps | 400W | |
| Dimmable leds | 300W | |
| TRIAC dimming driver | 300W | |
| Panel color | Ivory-white | |
| Panel size | 86*86*44mm（W*H*D） | |
| Packaging size | 103*103*50mm（W*H*D） | |
| G.W. | 140g | |
| Working temperature | -10℃ ~ 40℃ | |
| Relative humidity | 20~90% RH | |
