- Place of Origin: china
- Brand Name: Euchips
- Model Number: RP3-5A-DIN

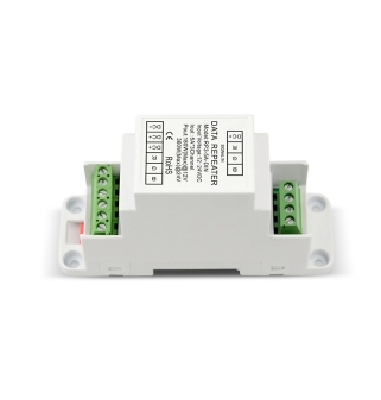

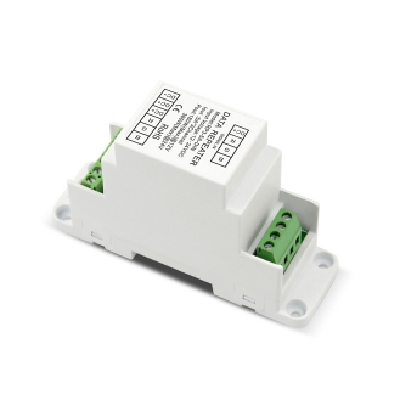

12-24VDC 1 Channel LED PWM Power Repeater RP5-5A-DIN
Feature
1. For power repeat of synchronous changing signal
2. Accepts PWM control(Power or Signal)
3. 3 channel RGB control, the max current of each channel up to 5A
4. Theoretically we can connect limitless LED modules by connecting the repeaters in series.
5. Can be used for RGB lighting control, also can used for single or two-color LED lighting control.
6. Match with many kinds of LED modules
- Place of Origin: china
- Brand Name: Euchips
- Model Number: RP3-5A-DIN
Technical Parameter
Product Name | 1 Channel 12V 24V LED PWM Power Repeater |
Item | RP3-5A-DIN |
Input voltage | 12-24VDC |
Input signal | PWM(Signal or Power Type) |
Input /Output channels | 3 |
Output current | 5A*3ch, Max 15A |
Output power | 180W(12V)/360W(24V) |
Installation | Rail or Screw fixing |
Mounting Rails | TS-35/7.5 or TS-35/15 |
Product Size | 112(L) *35 (W)*67(H)mm |
Pack Size | 354(L)*234(W)*232(H)mm； 60pcs/6.5kg/carton |
G.W | 100g |
Work Temperature | -30 ~ 50℃ |
