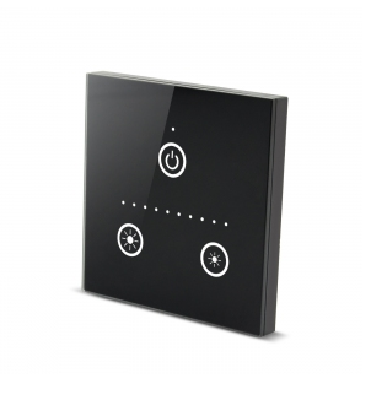

1 Channel 12V 24V DC Multi-function Touch Panel Controller WALLDIM201
Feature
1. 0-10V signal controller
2. With led indicator for 10 dimming level
3. Using glass material, stylish appearance.

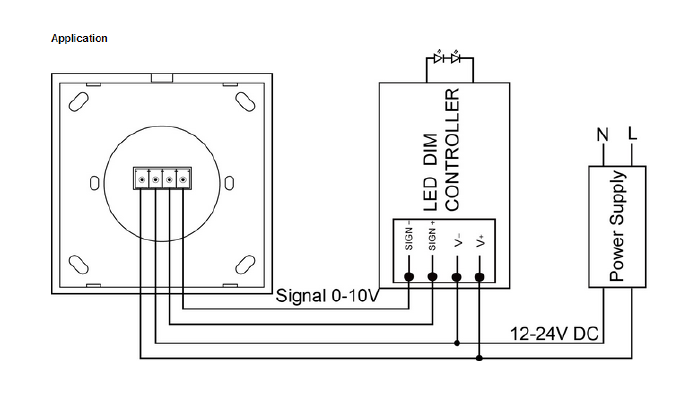

4. can connect to LED 0-10V Dimmer.
5. Can be installed in the wall, suitable for all types of wall boxes.
6. 2 Channels version (WALLDIM202) and 3 Channels Version (WALLDIM203)
- Place of Origin: china
- Brand Name: Euchips
- Model Number: WALLDIM201
Technical Parameter
Product Name | 1 Channel 12V 24V DC Multi-function Touch Panel Controller |
Item | WALLDIM201 |
Supply voltage | 12-24VDC |
Output voltage | DC0 -10V |
Output current | 150mA |
Static power | <1W |
Output channel | 1 channel |
Product dimension | L86 Χ W86 Χ H10 mm |
Packing size | L145 Χ W135Χ H48mm |
Working temperature | -10-40 ℃ |
Net weight | 95g |
Gross weight | 125g |
